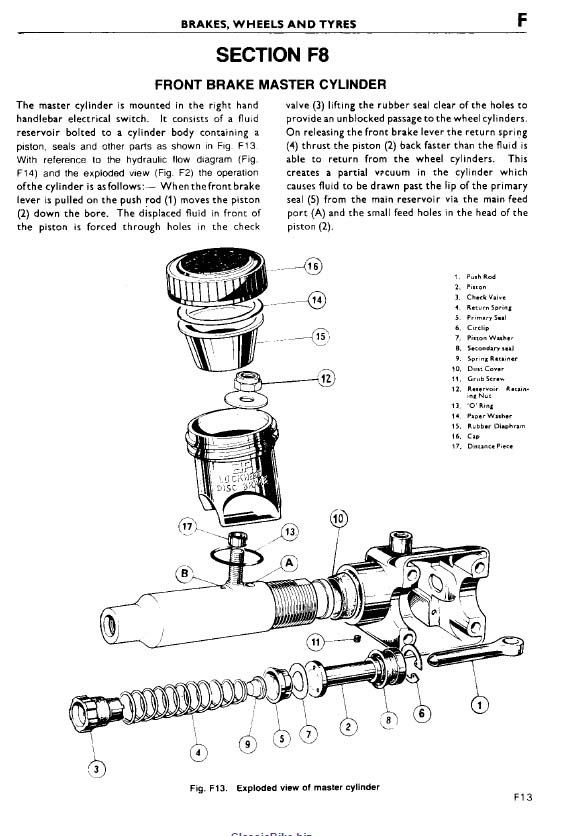

I love ink lined technical drawings showing exploded components. You can see how it all goes together. Here’s excerpts from the Triumph Workshop Manual for a ’75 T140V/TR7 of the front brake system. This will help me with my updated stopping project as mentioned yesterday. I can see the draughtsman lined up in a smoky office at Meriden, Coventry poring over a Mylar sheet taped to vast drawing boards. Examining with a keen eye over the top of a thick pair of hornrims, parts sent up from the development workshops. They occasionally make sure their Rotring drawing instruments are filled, tapping their briar pipes occasionally on the heel of their oxfords.
