Terrier Cutaway

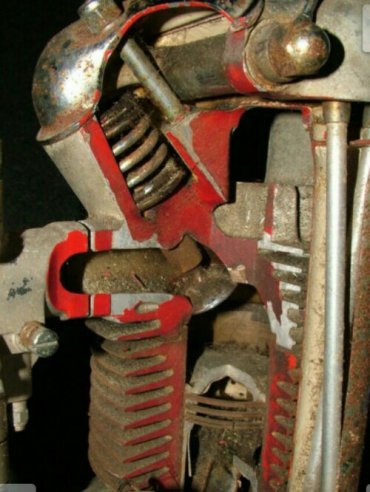

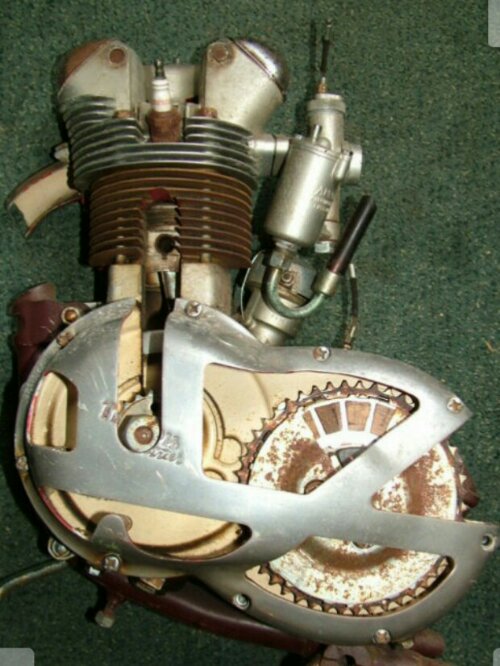

The 150cc Triumph Terrier T15 was the smaller precursor to the Tiger Cub, a very similar layout and details with the odd crossover part. Here’s an aged cutaway demonstration engine with innards exposed to see how parts mesh into a machine for go. It take a mechanical understanding of the machine at hand to chop it into an assembled whole with holes…




This is fairly handy for my ensuing needs while reassembling the Cub. This grubby, ‘shelved’ display sure could use a good restoration. Itcsold on the UK eBay for £1,000.
