March 4, 2014

Amal

A quick strip of an Amal Monobloc carburetor obtained from eBay reveals a very serviceable item.

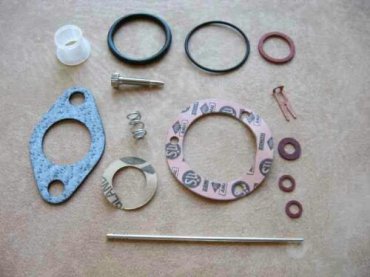

A thorough cleaning of parts, new seal kit, needle, springs & jet, and the all important petrol/air mixer will be ready to eventually mount at a later date.

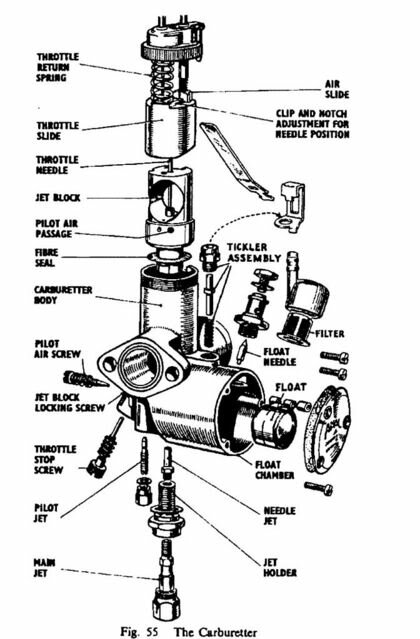

A nice exploded workshop manual illustration will ensure all parts go back where they belong…

Note to self: Amal 376/314, 15/16in choke, 140 main jet, 15 pilot jet, 0.106 needle jet, needle pos’n 3, needle type C, slide 3.5

Amal 375/44 100 main jet, 25 pilot jet, 3.5 cutaway, needle jet 0.11 position 3
