Computer Aided Design


CAD: allowing the machine to be built in vector space within a drafting program so the assembly of components can be put together and tested before a lathe is spun, mold is formed and bolt netted.

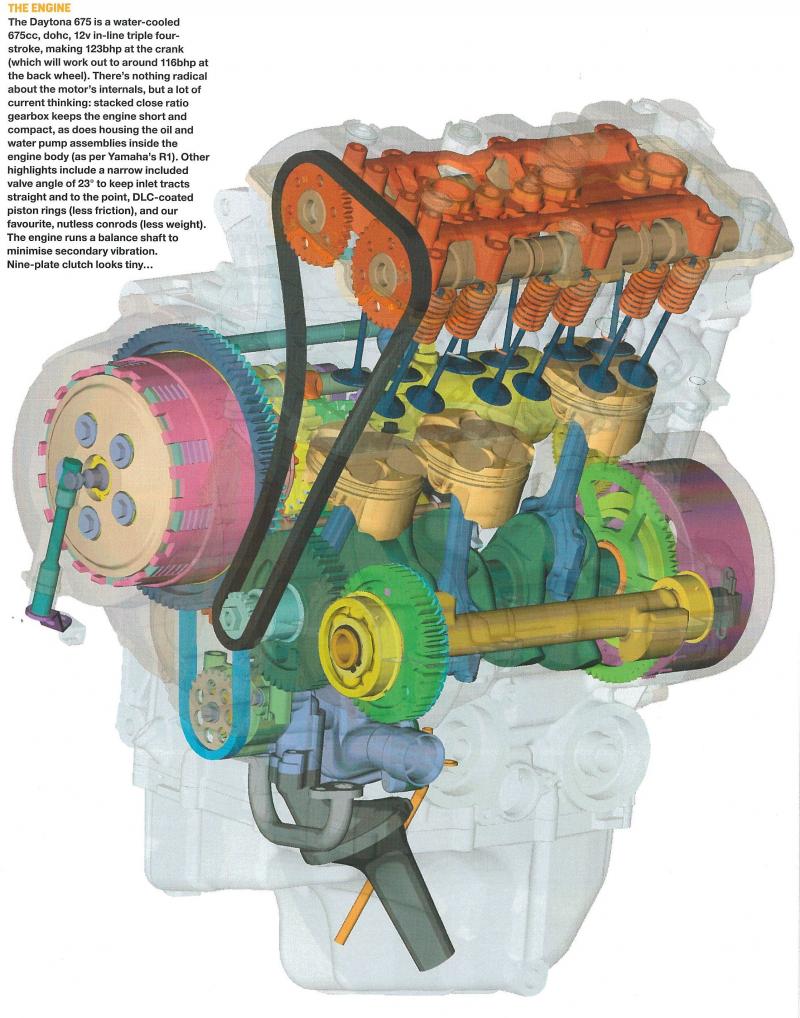

This is the powerplant to Triumph supersport Daytona. A compact behemoth of horsepower. To think its capacity is only a couple of dozen cc’s more than my forty year old Bonnie.
Color coding parts helps differentiate the workings too.
