Triumph Tiger Cub: which to choose?

From: Classic Bikers Club – Aug ’13

“The Triumph Tiger Cub was a funny machine in many ways, chiefly in that it (in conjunction with its smaller but very similar sibling, the Terrier) was Triumph’s only plunger-framed motorcycle and only single cylinder, too…
The first 150cc Terrier was delivered in 1953, the Tiger Cub coming the next year. The first year ones had a high-level exhaust pipe, interestingly, though that was short lived. What wasn’t short lived though was an obvious and explicit link between the Triumph ‘babies’ and the bigger models in the range; the Terrier was amaranth red, a la the Speed twin, with the Cub finish echoing Tigers 100 and 110.
Over the years, there were a dizzying amount of Cub variants, with French Army and Bermudan among the stranger ones, alongside the more expected ‘competition’ jobs; trials and scrambles were both listed, while in the States many were converted to long, short and dirt track spec. They were used for road racing too, and even record breaking.
The Cub has remained a model that’s well loved, its ‘cheeky charm’ undimmed by the passing of time. For whatever reason, they were a ‘cute’ model which always raised a smile – and still do today.


Model description and production years follow.

1955 Triumph Tiger Cub T20
One year on from launch, the high-level pipe has been replaced though there were still 19in rims front and rear. Essentially, the Cub was just a bored (63 from 57mm) and stroked (64, up from 58.5mm) Terrier, with different mudguards and paint finish.

1958 Triumph Tiger Cub T20
The swinging arm actually debuted in 1957, with the most notable 1958 differences the mouth organ tank badges and the deeply valanced rear mudguard. The 16in rims had come in 1956 on the plunger framed version.

1962 TS20 Cub Scrambler
The competition potential of the Cub was examined early on, with many finding favour with trials riders in particular, though others were used on the dirt tracks in the US and there was the rarest of all Cubs, the Scramblers – less than 400 were built.

1962 Triumph Tiger Cub T20SH (Sports Home)
Based on the SL (Scrambler Lights) and SS (Street Scrambler) versions the SH bowed to British sensibilities with low handlebars, and fitted with a 9:1 compression ratio piston, R cam and close ratio gears. A large Monobloc carb’ was fitted too.

1963 Triumph Tiger Cub T20
The side-points engine made its bow in August 1962, with the partial rear enclosure having been implemented for 1959. This was essentially the standard ‘whole’ Triumph Tiger Cub’s final incarnation, running through to 1965.

1966 Triumph T20B Super Cub
The Bantam and Super Cubs were parts bin specials – the Bantam Cub using a BSA Bantam D7 rolling chassis, the Super Cub a D10 later D14. Most Bantam Cubs were made 1966, ‘Supers’ 1967, with a few trickling out as late as 1969.”

July 25, 2013

Car Repair

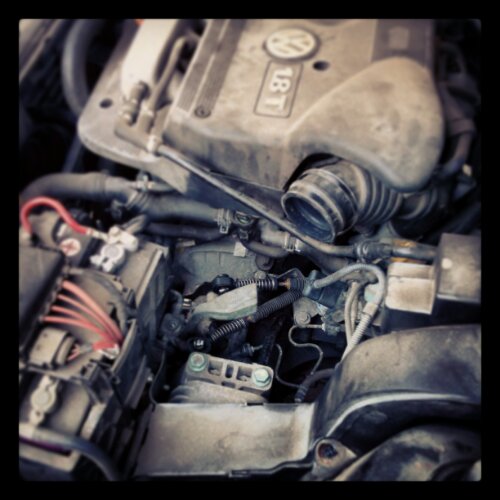

Motorcycle fiddling gives you confidence for inner engine bay repair. In my endeavor to sync a notchy gear shift an end connector clamp leg snapped off. So ordering a new part, two to be safe, I swapped out both connectors and adjusted them. One slides the great cluster across the neutral — and the other moves the gears into their respective cluster ratio |||


Gertie is back on the road…
